May 5, 2026
Choosing the right silica ramming mass is one of the most important decisions for any steel plant using an induction furnace. The furnace lining is not just a refractory wall. It is a working barrier that must handle molten metal, high temperature, slag contact, thermal cycling, mechanical impact, and repeated heating and cooling.
Many buyers compare silica ramming mass only by price per tonne. This is a mistake. The better way to compare material is by asking a more practical question: how much reliable furnace life, safety, and production stability will this material give per heat?
The best silica ramming mass is not decided by one parameter alone. It depends on chemical purity including SiO₂ and Fe₂O₃ levels, grain size distribution, sintering behaviour, moisture control, furnace size, operating temperature, installation practice, and supplier consistency.
This guide explains the main points that steel plants should check before selecting silica ramming mass for induction furnace lining.
Before selecting any ramming mass, the buyer should first understand the furnace application.
The same material may not perform equally in every furnace. A 1-ton furnace, 5-ton furnace, 10-ton furnace, and 20-ton furnace may have different lining thickness, heat pattern, charge mix, operating practice, and sintering requirement.
Before buying, a steel plant should clearly identify:
This is important because silica ramming mass must match the actual working condition of the furnace. A material that performs well in one plant may not give the same result in another plant if the operation pattern is different.
For example, a furnace that is frequently cooled and restarted may require better thermal-shock handling. A furnace with aggressive slag may need closer attention to slag compatibility. A furnace that uses poor or dirty scrap may face more lining attack than a furnace using cleaner charge material.
The first major quality parameter is SiO₂ percentage.
Silica ramming mass is expected to have high silica content because silica is the main refractory component. Higher SiO₂ generally means the material has better purity and fewer unwanted minerals, provided the raw material is properly processed and graded.
For steel plants, high silica purity is important because impurities can affect the behaviour of the lining at high temperature. A cleaner silica base helps the lining remain more predictable during sintering and furnace operation.
A buyer should not only ask, “What is the silica percentage?” The better question is: what is the full chemical analysis of the material?
At Gajanan Group, premium-grade silica ramming mass is manufactured with a focus on high-purity raw materials and controlled quality parameters for induction furnace applications.
Fe₂O₃, or iron oxide, is one of the most important impurities to check in silica ramming mass.
For induction furnace lining, low Fe₂O₃ is generally preferred because excess iron oxide can influence the high-temperature behaviour of the lining. It may reduce the refractory stability of the material and affect lining performance under actual furnace conditions.
This matters because two ramming mass suppliers may both claim “high silica,” but their iron content may be very different. For a steel plant, that difference can matter during furnace operation.
Gajanan Group’s silica ramming mass product range is designed with low Fe₂O₃ levels through premium and handpicked raw materials that are regularly tested, with product specifications mentioning Fe₂O₃ max 0.05% for listed grades.
A common mistake is thinking that silica ramming mass quality is only about chemical purity. Chemistry is important, but grain size distribution is equally important.
Silica ramming mass is not supposed to be only powder. It is a controlled mixture of coarse grains, medium grains, fine grains, and very fine particles. Each size fraction has a purpose.
The coarse grains provide structure. The medium grains fill the larger spaces. The fine grains and powder fill the smaller voids between the particles. When the distribution is balanced, the lining can be compacted more densely during ramming.
A good grain size distribution helps improve:
If there are too many coarse particles, the lining may have open spaces. If there are too many fines, the lining may become too tight, difficult to compact properly, or may sinter differently than expected.
This is why the buyer should ask for the grain size range and grain ratio, not only the chemical report.
For example, Gajanan Group’s silica ramming mass grades include controlled sizes such as 0–5 mm and 0–5.5 mm, with specified grain ratios such as 52–48, 50–50, and 55–45 depending on the grade and application.

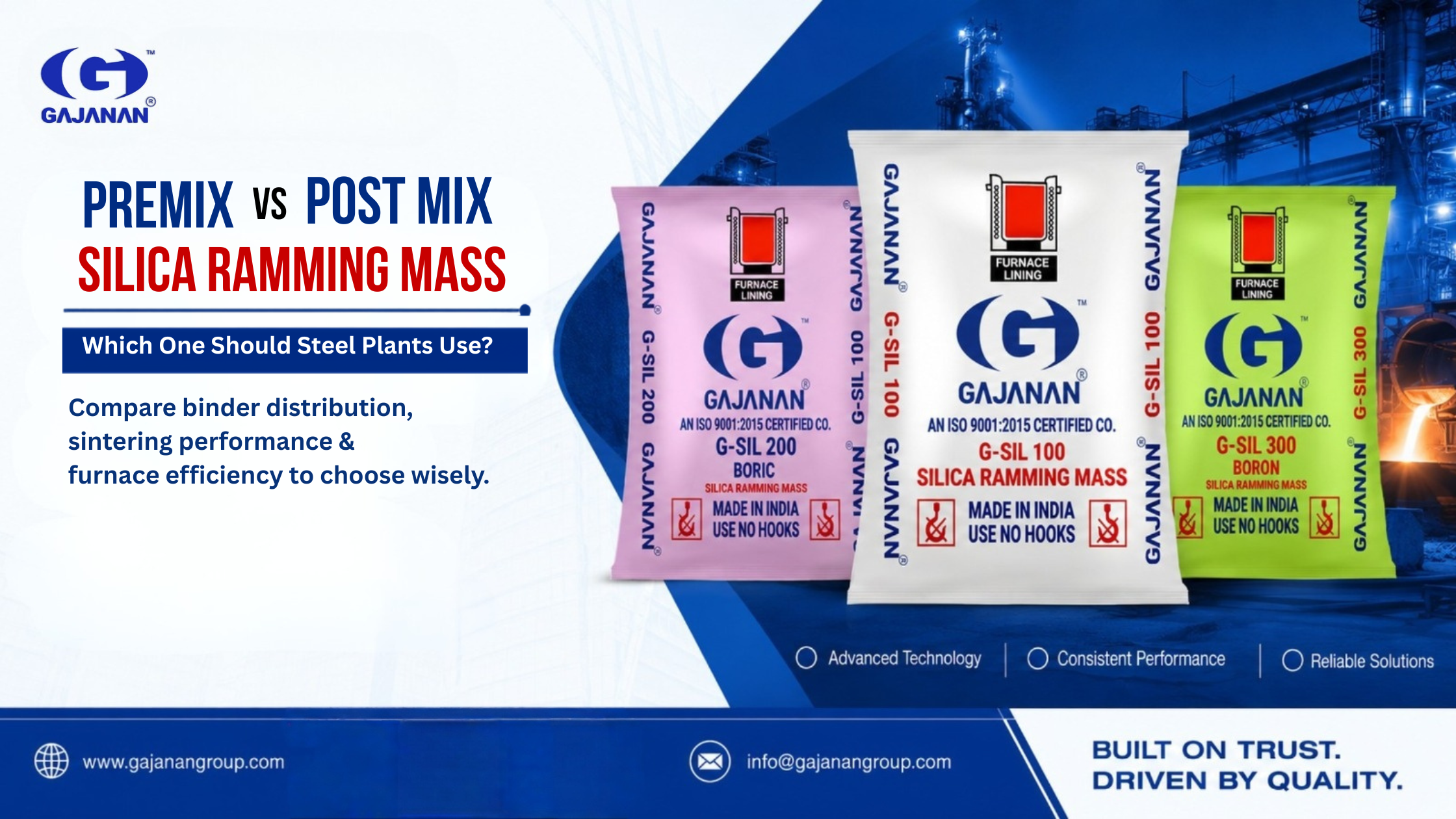

Premix silica ramming mass means the sintering aid is already blended with the material before dispatch. Post mix means the plant adds the additive separately before lining.
Both have their place, but the buyer should choose carefully.
Premix may be better when:
Post mix may be preferred when:
The risk with post mix is uneven distribution. If the additive is not mixed homogeneously, some areas may sinter more while other areas remain weak. This can lead to uneven lining performance.
For most buyers, the practical question is simple: who can mix the additive more accurately and consistently — the plant team on-site or the manufacturer under controlled conditions?
Moisture is one of the hidden enemies of silica ramming mass.
Even if the chemical composition and grain size are good, poor storage or packaging can damage material performance. Moisture can affect flowability, ramming, compaction, and furnace heat-up safety.
Buyers should check:
Gajanan Group supplies silica ramming mass in 50 kg HDPE bags with inner liner for moisture protection and easier handling.
For steel plants, proper storage is simple but important. Bags should be stored in a dry, covered area. They should not be kept directly on wet floors. During monsoon season, extra care should be taken.
Price matters, but it should not be the only deciding factor.
A cheaper material may save money during purchase but increase cost during operation. If it gives fewer heats, causes more downtime, needs more patching, or increases relining frequency, the plant may lose more money than it saved.
A better comparison is:
Actual cost per heat = (ramming mass cost + installation labour cost + sintering/start-up cost + patching or repair cost + relining downtime cost + production loss during shutdown) / Total number of heats achieved
This gives a more practical comparison because it connects the material cost with actual furnace performance. For example, a lower-priced ramming mass may look economical per tonne, but if it gives fewer heats, the cost per heat may become higher.
The best silica ramming mass is not always the lowest-priced material. It is the material that gives dependable performance under the plant’s actual furnace conditions.
At Gajanan Group, we believe that choosing silica ramming mass should be done based on furnace requirement, not guesswork.
Our silica ramming mass range includes different grades such as pure ramming mass, boric premix, boron premix, alpha ladle, and rock bottom grades. These grades are designed to support different furnace lining areas, sintering preferences, and operating conditions.
Gajanan Group focuses on:
Our aim is not only to supply material, but to help steel plants choose the suitable refractory lining material for their furnace conditions.
Along with silica ramming mass, Gajanan Group also manufactures Nozzle Filling Compound, Metallurgical Flux, and 90K Mortar, giving steel plants a wider refractory and metallurgical product range from one supplier.
The best silica ramming mass should be selected by checking SiO₂ purity, Fe₂O₃ level, grain size distribution, sintering aid, moisture protection, furnace capacity, operating temperature, and supplier consistency.
No. High SiO₂ is important, but it is not the only factor. A good ramming mass should also have low impurities, proper grain size distribution, correct sintering aid, dry condition, and consistent batch quality.
Fe₂O₃ is an impurity that can affect the high-temperature behaviour of the lining. Lower Fe₂O₃ is generally preferred for better refractory performance and cleaner material quality.
Grain size distribution affects packing density and compaction. A proper mix of coarse, medium, fine, and extra-fine particles helps reduce open spaces inside the lining and supports better lining performance.
Premix is useful when the plant wants consistent additive distribution and reduced manual mixing risk. Post mix can work when the plant has experienced staff and wants more control over additive percentage.
It should be stored in a dry, covered area, preferably on pallets, away from rain and floor moisture. Moisture-protected packaging with inner liner is preferred.
Not always. Cheaper material may reduce purchase cost but increase downtime, relining frequency, patching, and cost per heat. Steel plants should compare total furnace performance, not only price per tonne.
